What a Pocket Analyzer Showed Me About My Backyard Antenna

I have been a ham since 2009, first as a Technician and then General since 2012, and for most of that time I trusted my backyard wire antenna the way you trust an old friend. It went up about ten years ago, it survived the 2020 ice storm that knocked our county off the grid for four days, and it always seemed to get me into the repeaters I wanted. Then I bought the AURSINC NanoVNA-H, a pocket-sized vector network analyzer that checks SWR and tunes antennas, and I found out my old friend had been lying to me for years.

SWR stands for standing wave ratio. In one short clause, it is a measure of how much of your transmitted power actually leaves the antenna instead of bouncing back into the radio. High SWR means your radio is working harder and your signal is going nowhere. I knew the theory. I had just never measured my own antenna with anything better than the meter built into an old handheld, and that meter only told me the radio was still alive.

The afternoon the AURSINC NanoVNA-H showed up, I sat on the back porch with a cup of coffee and read the quick start sheet twice. The unit is small enough to ride in a shirt pocket. It runs on its own battery, which matters to me because my whole setup is built around the idea that the power can go out and I still want to talk to Joan and the county net. That is the standard I hold every piece of gear to now.

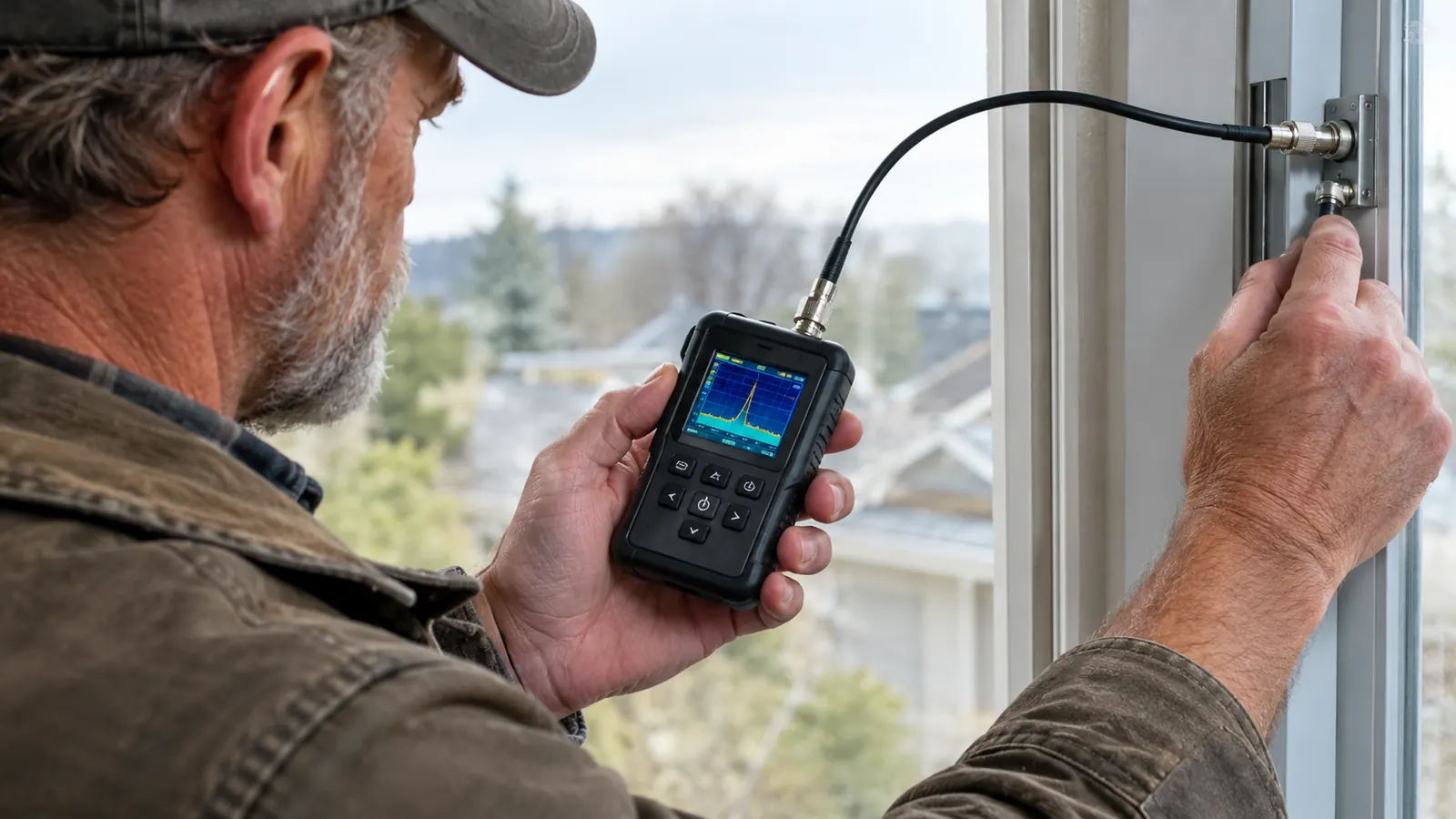

I connected the analyzer to the feed point where my wire antenna comes through the window, pressed a couple of buttons, and watched a trace crawl across the screen. What it showed me made me put the coffee down.

My antenna was resonant at 7.1 megahertz, not at the 14.2 megahertz band I had been calling on for years. I had been talking into a dummy load and wondering why the signal reports were always so weak.

Here is what I mean by resonant. An antenna is resonant at the frequency where it is happiest, where the impedance matches the radio and the power goes out cleanly. My wire antenna was cut for the 20 meter band, or so I thought. The analyzer showed a clean dip at 7.1 megahertz, which is the 40 meter band, and nothing useful at 14.2. Somewhere along the way, over ten years of weather and ice and my own lazy repairs, the antenna had drifted a full band off where I thought it was.

That explained a lot. I had been blaming the cheap coax, then the connector, then the radio, then the band conditions. The truth was simpler and more embarrassing. My antenna was working, just not where I thought it was. It had probably been that way since the ice storm, when a branch came down on the far end and I rehung the wire a little shorter than the original cut. I measured nothing that day. I just eyeballed it and went back inside for coffee.

The fix took about an hour. I added a length of wire to the far end, reconnected the analyzer, and watched the dip move from 7.1 up toward 14.2. The AURSINC NanoVNA-H does not fix antennas for you, nothing does, but it shows you exactly what you changed and whether the change worked. That feedback loop is the whole point. You can adjust, measure, adjust again, and know when to stop instead of guessing.

I have since used the same analyzer on the magnetic-mount antenna on my F-150, the one feeding the AnyTone under the dash, and found a connector that had worked loose under a year of highway miles. Tightened it, checked the trace, and the mobile setup got noticeably more reliable on the drive into town. The analyzer rides in the glove box now. It is small enough that it costs me nothing to keep it there.

None of this is about having the fanciest test equipment on the bench. It is about the difference between assuming your antenna works and knowing it works. During storm season, when Joan keeps the handheld on the kitchen counter and I pull the AnyTone out of the truck to run off the bench supply, I want the whole path from the radio to the sky to be as good as I can make it. The NanoVNA-H is the only piece of gear I own that lets me check that path without taking anything apart.

What I'd Tell You If We Were Sitting at My Kitchen Table

If you are new to this, or if you have been at it as long as I have, here is the honest counsel I would give you across the kitchen table. Buy a decent radio first, get your license if you do not have one, and then buy an analyzer before you buy a second radio. A radio you can hear is worth more than a radio you cannot. The AURSINC NanoVNA-H is not a toy and it is not a test instrument for the lab. It is the tool that turns antenna work from superstition into something you can measure, and for a retired lineman who likes to know what he is working on, that is worth a lot.

I would also tell you to check your antenna more than once a decade. The ice storm taught me that a setup can look fine and be quietly broken. Ten minutes with the analyzer twice a year, once before storm season and once after, is enough to catch the problems while they are still cheap to fix. That is the practical, calm way I think about preparedness. Not fear, just routine.
